Huntron Technical Support Quick Tip #6
Previous Quick Tips (Quick Tips Archive)
Reducing Test Times for Huntron Probers
There are several modifications you can make to your Prober tests to reduce run time. Here is a basic list of suggestions:
- Use higher range Frequencies when possible. There is a marked decrease in test time when using 200Hz versus 60Hz. However, do not compromise test quality for the sake of speed. If a lower frequency is needed
to get the proper signature then the best choice is to use it.
- Turn the “Z Home Between Components” off in the Tree/Sequence tab. Be sure the Sequence Up position (set in the Prober pane/Teach Height tab) is set
high enough to clear any tall components or obstacles.
- Reduce the number Correction Steps in the Tree/Component tab from 3 (default) to 1. This controls how many times the software will query the Prober encoders for position correction. If you are
probing very fine pitch devices it is probably best to avoid this suggestion.

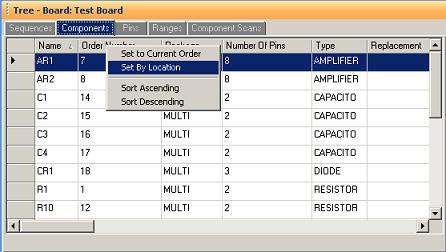

- Optimize the probing pattern by setting the component order by location. Right-click the Tree/Component/Order Number column header and select “Set By Location” (see
image below). This will re-order the components based on their XY location on the board and therefore optimize the probing order. This is an important step if you use
CAD data to create tests.
